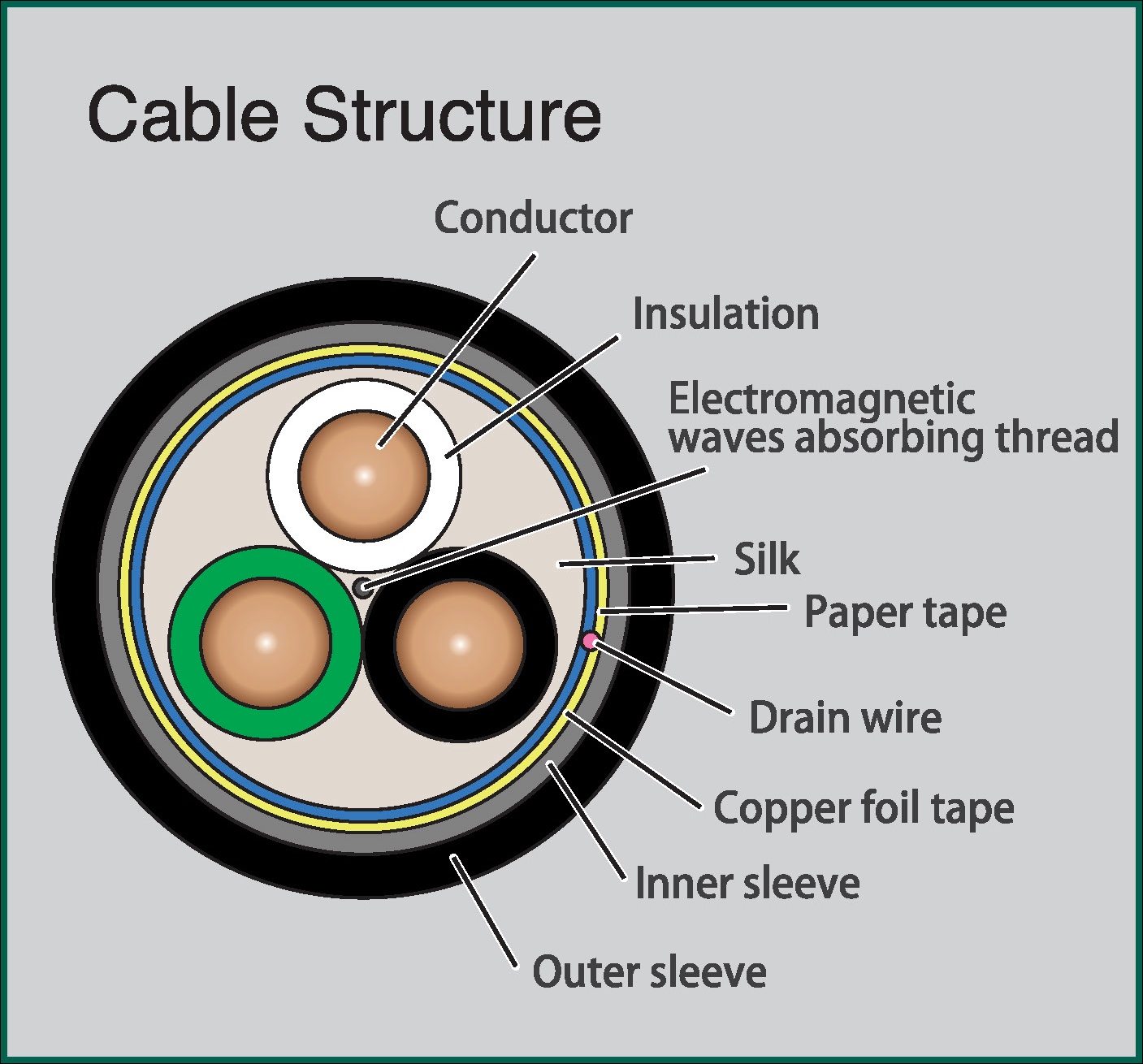

Conductor: 7N Cu D.U.C.C. Stressfree(0.37mm×18 strands. 2.0Sq. AWG14)×2
4N Cu for ground (0.37mm×18 strands)
Insulation: High molecular Polyolefin Resin
Inclusion: 100% Silk
Shielding: Copper foil tape with drain wire
Inner sleeve: Polyolefin resin with Tungsten and Amorphous powder
Outer sleeve : High molecular Polyolefin Resin
Cable diameter : 12.6mm
Conductor
resistance : 6.9mΩ/m
