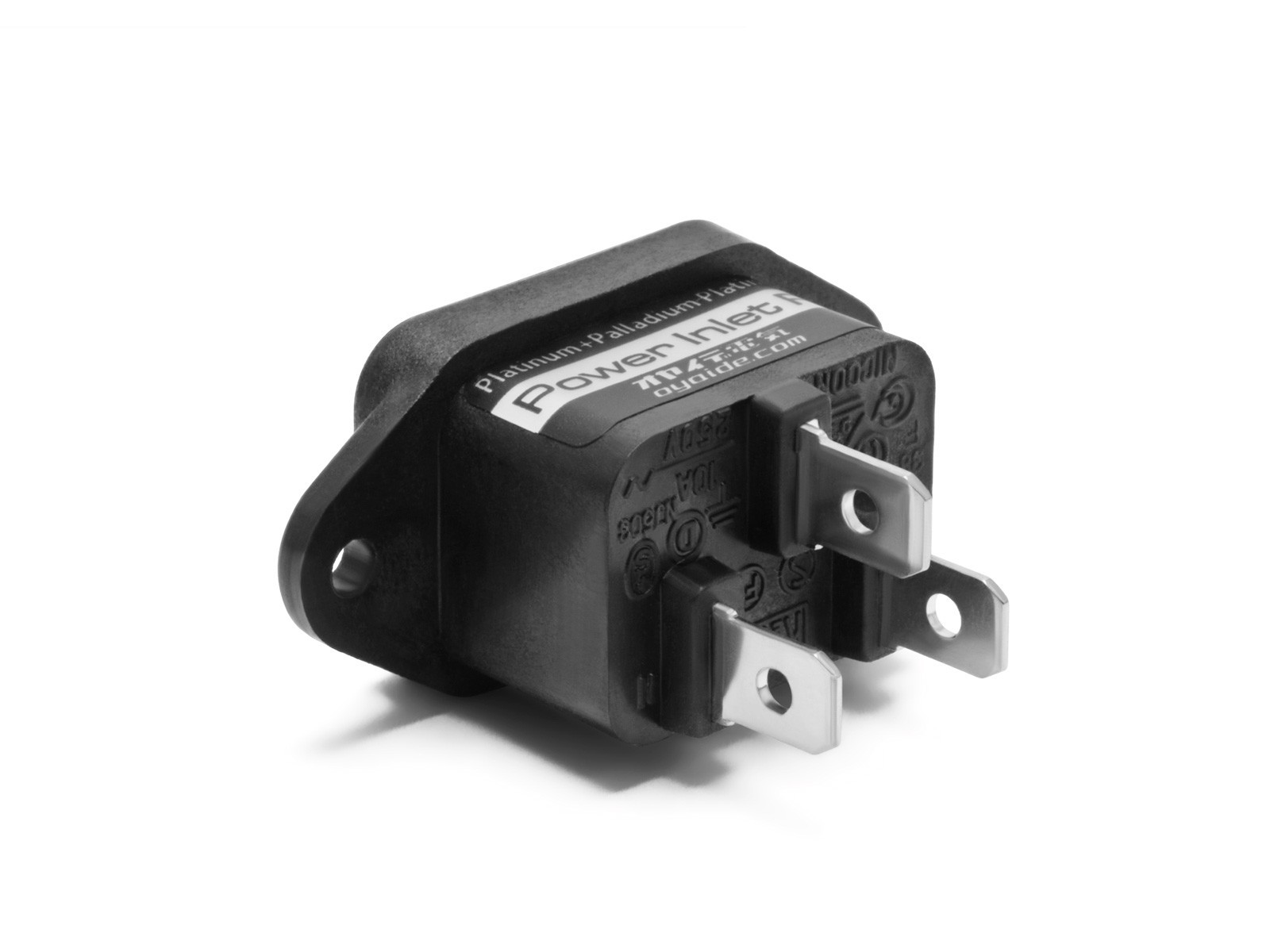

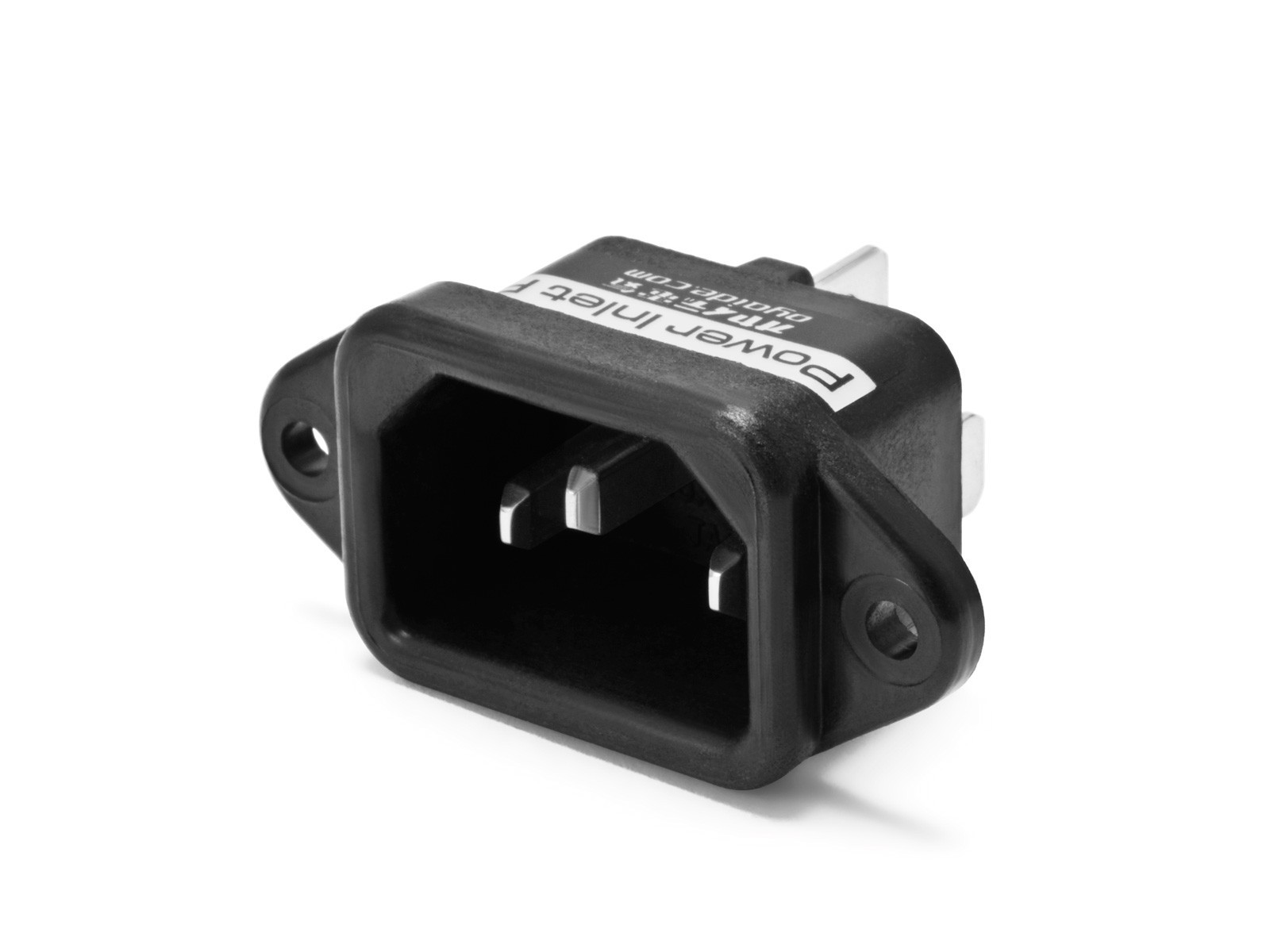

Oyaide AC POWER INLET PP with Faston Connectors

The premium IEC C14 inlet with platinum + palladium plated terminals. A powerful setup for AC power IEC C14 inlets exclusive for audio use. The "POWER INLET PP" is a power inlet specially designed for audio equipment with a phosphor bronze blade that has been buffed to a mirror finish and finished with platinum and palladium plating. It comes with Oyaide's original "FTL-PP" (FASTON 250 series terminals with platinum + palladium plating), and the wire connection is wide enough for FASTON terminals to be attached. With its smooth conductive performance, it contributes significantly to upgrading your equipment's power transmission.

Key Features

• Premium Plating: Platinum + Palladium on hand-polished phosphor bronze blades for superior conductivity, insertion/extraction, and sound quality.
• Robust Body: PBT resin with 30% glass filler for excellent durability, anti-vibration properties, and heat resistance during soldering.
• Versatile Connections: Supports direct soldering (with 2.6mm hole for stronger mounting) or FASTON 250 series terminals.

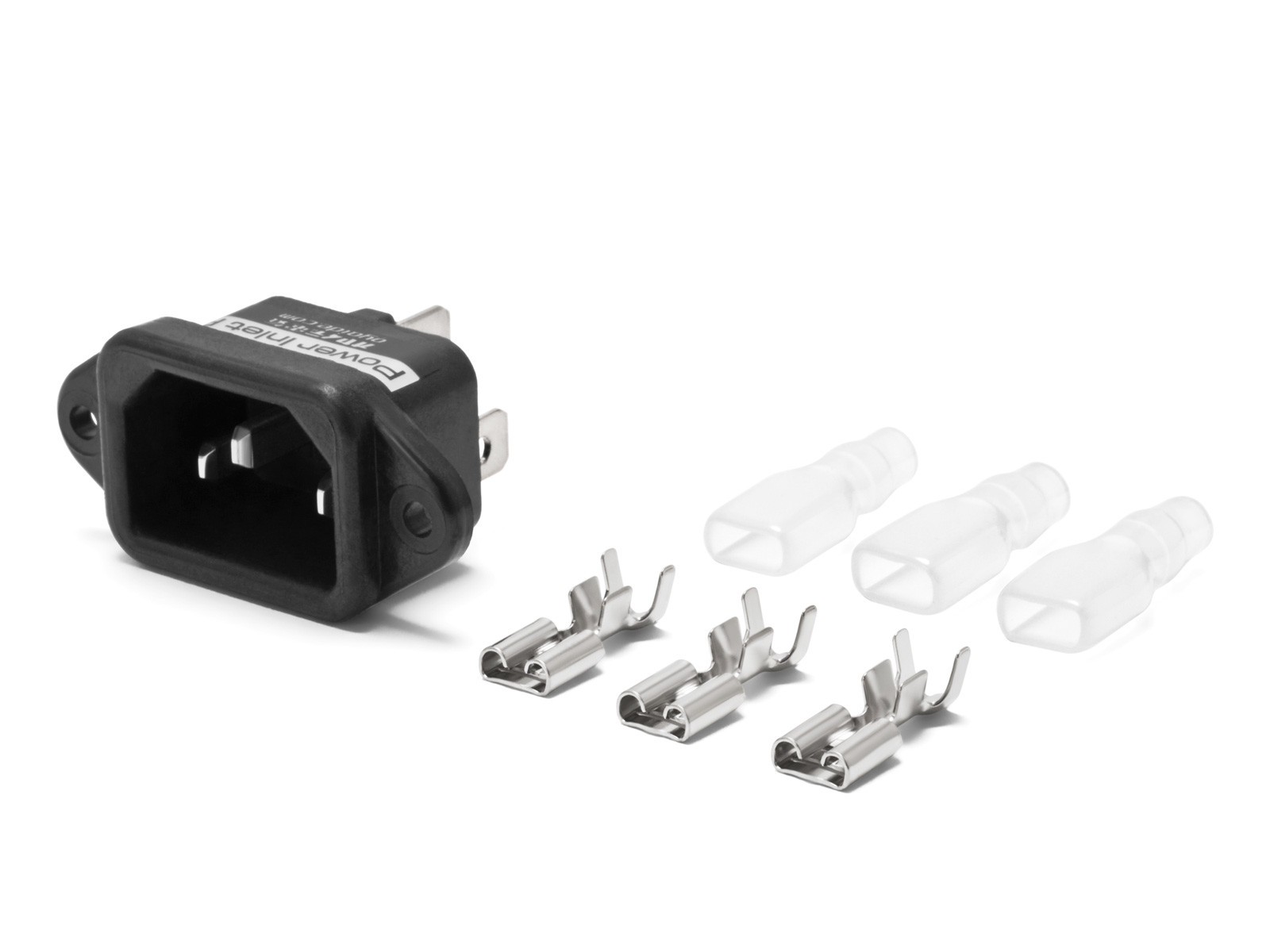

• Included Accessories: FTL-PP platinum + palladium plated FASTON terminals + PVC covers (3 sets).
• Audio-Optimized Design: Phosphor bronze blades (proven in Oyaide's premium outlets and plugs) for enhanced performance.

Specifications

Product Name: POWER INLET PP

Blade (L/N): Phosphor Bronze (Buff Polished)

Plating: Platinum + Palladium

Body: PBT with 30% Glass Filler

Rated V/A: 125V/15A - 250V/10A CE

Withstand Voltage: AC 2000V / 1 min.

Heat Resistance: UL 94V-0

Mounting: M3 Screws; Hole Dimensions: 20mm × 27.5mm

Release Date: April 2018
