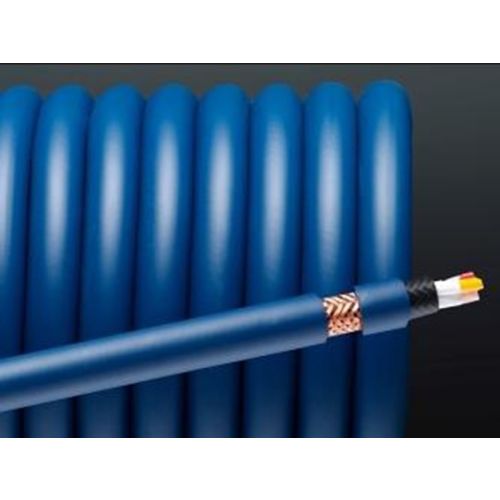

Features
*α-conductor: α-conductor is an OCC conductor, μ-conductor, or μ-OFC conductor that has been subjected to α-process treatment (ultra-low temperature treatment & special electromagnetic field treatment).
Red = Hot / Yellow = Cold / Natural = Earth
Specifications
|
conductor
|
|
Material
|
α(Alpha) Conductor (2 Type stranding)
|
|
material
|
Alpha-OCC |
|
Composition (books/mm)
|
56/0.18 (central) + 29/0.18 (outside)
|
|
Outer diameter (mm)
|
1.93 |
|
insulator
|
|
Material
|
Polyethylene (red, natural color, yellow)
|
|
Thickness (mm)
|
0.8 |
|
Outer diameter (mm)
|
3.53 |
|
sheath-1
|
|
Material
|
Flexible PVC (Black)
|
|
Outer diameter (mm)
|
9.6 |
|
sheath-2
|
|
Material
|
Flexible PVC (Dark Blue)
|
|
Thickness (Nom.)
|
1.5mm |
|
shield
|
0.12 α(Alpha) Conductor braid
|
|
Finished outer diameter (mm)
|
14.3 |
|
Electrical characteristics
|
|
Maximum conductor resistance
|
8.0Ω/km
|
|
minimum insulation resistance
|
1000MΩ/km
|
|
Withstand voltage
|
AC 1000V/1 min. |
