Features
*α-conductor: α-conductor is an OCC conductor, μ-conductor, or μ-OFC conductor that has been subjected to α-process treatment (ultra-low temperature treatment & special electromagnetic field treatment).

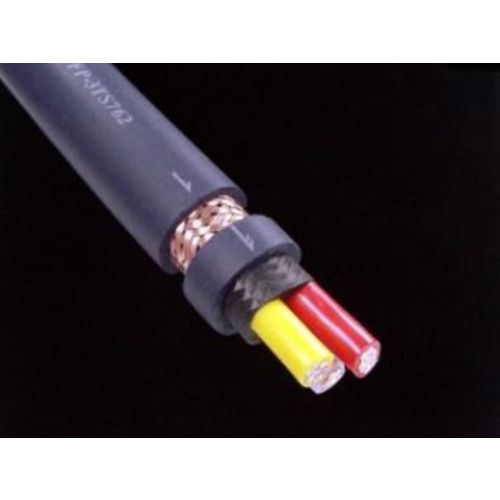

Red = Hot / Yellow = Cold / Natural = Earth
Specifications
|
conductor
|
|
Material
|
α (Alpha) conductor
|
|
material
|
μ-OFC
|
|
Composition (books/mm)
|
7X35/0.16 |
|
Outer diameter (mm)
|
3.5 |
|
insulator
|
|
Material
|
Polyethylene (red, natural color, yellow)
|
|
Thickness (mm)
|
0.85 |
|
Outer diameter (mm)
|
5.2 |
|
sheath-1
|
|
Material
|
Flexible PVC (Black)
|
|
Outer diameter (mm)
|
12.0 |
|
sheath-2
|
|
Material
|
Flexible PVC (Dark Purple)
|
|
Thickness (Nom.)
|
1.5mm |
|
shield
|
0.12 α(Alpha) Conductor braid
|
|
Finished outer diameter (mm)
|
15.5 (12 AWG) |
|
Electrical characteristics
|
|
Maximum conductor resistance
|
2.4Ω/km, JISC3005 6 20℃
|
|
minimum insulation resistance
|
2500MΩ/km, JISC3005 9.1 20℃
|
|
Withstand voltage
|
AC3000V/1 min., JISC3005 8 |
