Oyaide’s TUNAMI V2 is a heavy-duty, audiophile mains cable built as a 3-core cab-tyre design with a substantial 5.5sq (~10AWG) conductor size, intended to deliver high current cleanly (Oyaide notes it can transmit up to 30A with a 300V withstand rating). It’s typically specified with 102SSC copper for the live/neutral conductors (with OFC often used for earth), polyolefin insulation, and a 3-layer noise-control structure—an EMI-absorbing layer, a carbon/semiconductive separator, and copper-foil shielding with a drain wire—finished in a tough polyurethane jacket at around 15.0mm outer diameter.

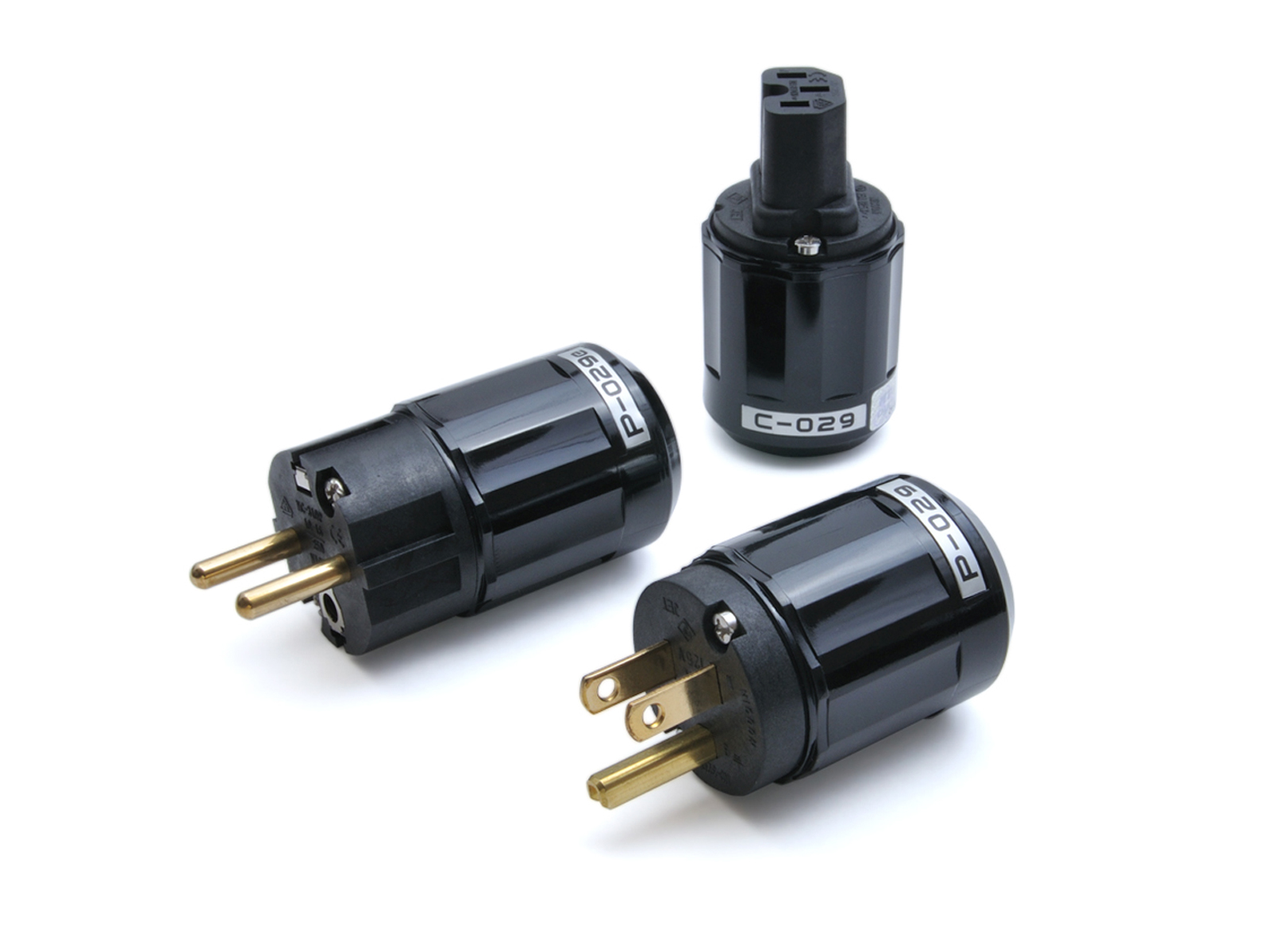

The Oyaide P-029 / C-029 / C-029e connectors are the entry models in Oyaide’s P/C series, using non-plated brass contacts for a direct, “nothing-added” contact interface. They’re designed to take serious cable girth (~6.5–17.0mm outer diameter) and up to 5.5sq / 10AWG conductors, with ratings that vary by model (e.g., P-029: 125V/15A, and C-029: 125V/15A or 250V/16A, depending on region/spec). The housings focus on rigidity and stability—30% glass-filled PBT for insulation and stiffness, plus non-magnetic stainless hardware and a strong strain-relief design intended to resist pull-out.
Furutech FP-203-10G (FP-203(R)/(G)) spade terminals are used to secure the conductors to the socket/screw terminals with a firm mechanical clamp, helping maintain a stable, low-resistance contact at the termination point.
