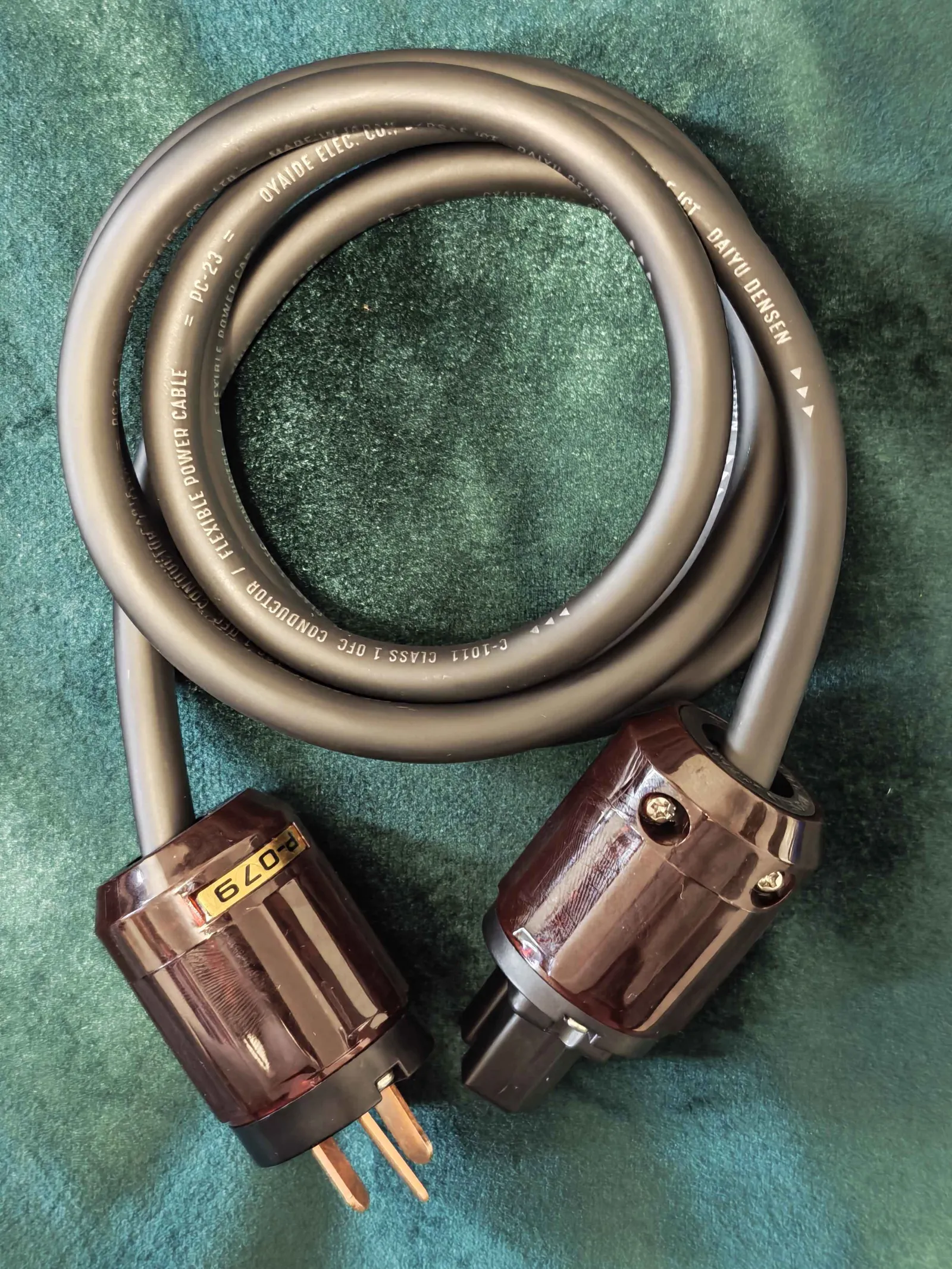

- This is a 2.0sq 3-core power cable using Class 1 oxygen-free copper C1011 material.
- A flexible and easy-to-use power cable with high cost performance.
- A pure high-quality power cable will bring out the full potential of the device's original sound without changing the sound.
PC-23 conductor configuration
7/12/0.18mm rope twist
Insulator and external sheath
The exterior sheath is a soft type vinyl sheath that is heat resistant and cold resistant from 105℃ to -30℃, making it highly flexible and easy to handle.
PC-23 specifications
| conductor | Class 1 oxygen-free copper C1011 conductor |
|---|---|
| Wire diameter | 7/12/0.18 Rope twisting |
| insulator | soft pvc |
| sheath | soft pvc |
| Cable outer diameter | 9.2mm |
| Rating | 300V/15A<PS>E certified product |
| Approximate weight | Approx. 14kg / 100m |
