Features

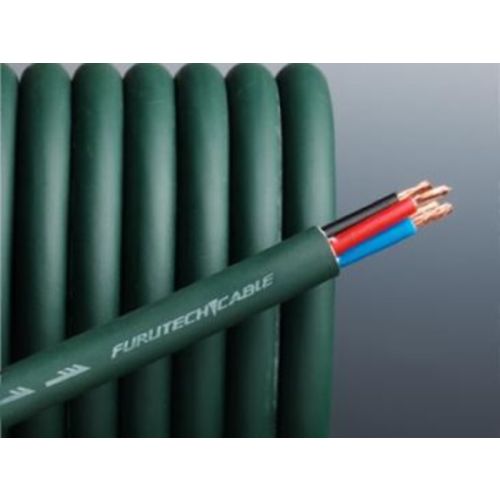

Bi-wiring speaker cable
13 AWG α (Alpha) conductor (cross section: 2.54 sq.mm) for Treble (Blue, Black)
13 AWG α (Alpha) conductor (cross section: 2.47 sq.mm) for Bass (Red, White)
*α-conductor: α-conductor is an OCC conductor, μ-conductor, or μ-OFC conductor that has been subjected to α-process treatment (ultra-low temperature treatment & special electromagnetic field treatment).
<Sound trends>
It tends to have a wide range and be bright.Sound quality with less turbidity.
Good responsive sound with a sense of dynamism and speed.
Specifications
| conductor -1 | |
| Material | α (Alpha) conductor |
|---|---|
| material | μ-OFC |
| Composition (books/mm) | 21/0.15+6/46/0.10(rope-lay stranding) |
| Outer diameter (mm) | 2.10 |
| conductor -2 | |
| Material | α (Alpha) conductor |
| material | μ-OFC |
| Composition (books/mm) | 7/5/0.3(concentric stranding) |
| Outer diameter (mm) | 2.20 |
| Insulator-1 | |
| Material | Polypropylene (for Treble, blue, black) |
| Outer diameter (mm) | 3.60 |
| Insulator-2 | |
| Material | Polypropylene (for Bass, red, white) |
| Outer diameter (mm) | 3.60 |
| sheath | |
| Material | Flexible PVC (Dark Green) |
| Thickness (Nom.) (mm) | 1.5 |
| Finished outer diameter (mm) | 11.0 |
| Electrical characteristics | |
| Maximum conductor resistance | 10.9Ω/km (for Treble) |
| Maximum conductor resistance | 10.20Ω/km (for Bass) |
| minimum insulation resistance | 1000MΩ/km |
| Withstand voltage | AC 500V/1 min. |
| Capacitance (for Treble) | Approx 70 PF/M |
| Capacitance (for Bass) | Approx 85 PF/M |
