Features
*α-conductor: α-conductor is an OCC conductor, μ-conductor, or μ-OFC conductor that has been subjected to α-process treatment (ultra-low temperature treatment & special electromagnetic field treatment).
<Color scheme>
Red = Hot / Yellow = Cold

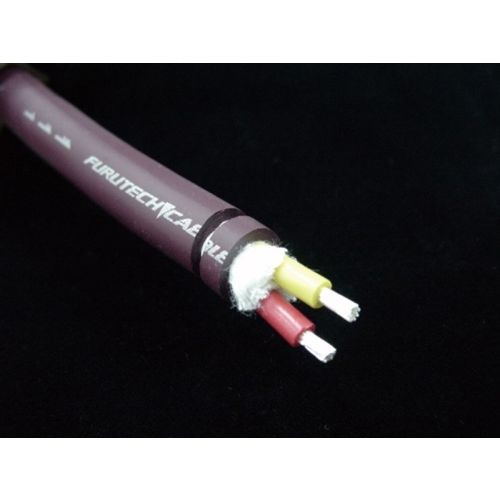

Specifications
| conductor | |
| Material | Silver coated α conductor (37 pieces/0.26mm) x 2 |
|---|---|
| Outer diameter | 1.9mm |
| insulator | |
| Material | Tensile polyethylene (red, yellow) |
| Outer diameter | 3.5mm |
| Twisting | Twisted together with 2-wick cotton interposition |
| Presser roll | Special paper tape overlapping |
| intervention | cotton yarn |
| sheath | RoHS directive compliant flexible PVC |
| Outer diameter | 10.5mm (14AWG/2SQ) |
Specifications
| conductor | |
| Material | Silver coated α conductor (37 pieces/0.26mm) x 2 |
|---|---|
| Outer diameter | 1.9mm |
| insulator | |
| Material | Tensile polyethylene (red, yellow) |
| Outer diameter | 3.5mm |
| Twisting | Twisted together with 2-wick cotton interposition |
| Presser roll | Special paper tape overlapping |
| intervention | cotton yarn |
| sheath | RoHS directive compliant flexible PVC |
| Outer diameter | 10.5mm (14AWG/2SQ) |
