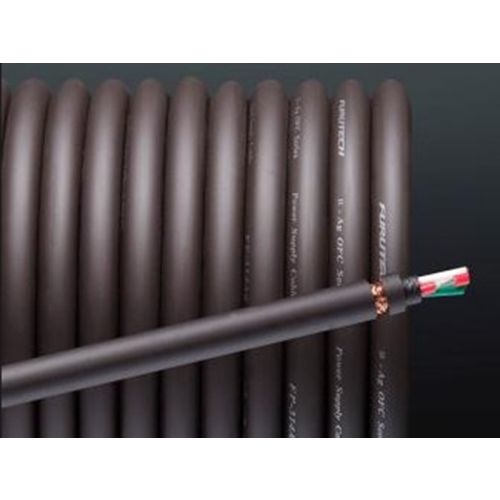

Features
Red = Hot / White = Cold / Green = Earth
*There is "FP-314Ag II" printed on the surface of the cable, but FP-314Ag and FP-314Ag II are the same product.
Specifications
| conductor | |
| Material | α(Alpha) conductor + Silver Plated α(Alpha) conductor |
|---|---|
| material | Silver Plated μ–OFC Conductor/μ–OFC Conductor |
| Composition (books/mm) | Silver Plated α(Alpha) Conductor 37/0.25 (Red, White) α(Alpha) Conductor 37/0.25 X 2C (Green) |
| Outer diameter (mm) | 1.93 |
| insulator | |
| Material | High density polyethylene (red, white, green) |
| Thickness (mm) | 0.8 |
| Outer diameter (mm) | 3.43 |
| sheath-1 | |
| Material | Flexible PVC (Black) |
| Outer diameter (mm) | 9.3 |
| sheath-2 | |
| Material | Flexible PVC (Brown) |
| shield | 0.12 α(Alpha) Conductor braid |
| Thickness (Nom.) (mm) | 1.5 |
| Finished outer diameter (mm) | 12.9 |
| Electrical characteristics | |
| Maximum conductor resistance | 10.0Ω/km |
| minimum insulation resistance | 1000MΩ/km |
| Withstand voltage | AC 1000V/1 min. |
