Oyaide’s FTVS-510 is a true 75Ω coaxial digital cable built for low-loss, high-stability transmission, using a 1.05 mm solid-core 5N (99.9995%) pure silver center conductor with a layered dielectric (a Teflon/FEP “skin” layer plus foamed polyethylene) to keep impedance consistent and reduce dielectric absorption. Noise rejection is handled by double shielding (copper foil plus a silver-plated copper braid), finished with a tough UV-coated polyurethane jacket at roughly 8.0 mm overall diameter—basically a “no-compromises” silver SPDIF/video-style coax designed for clarity, speed, and strong RF/EMI immunity.

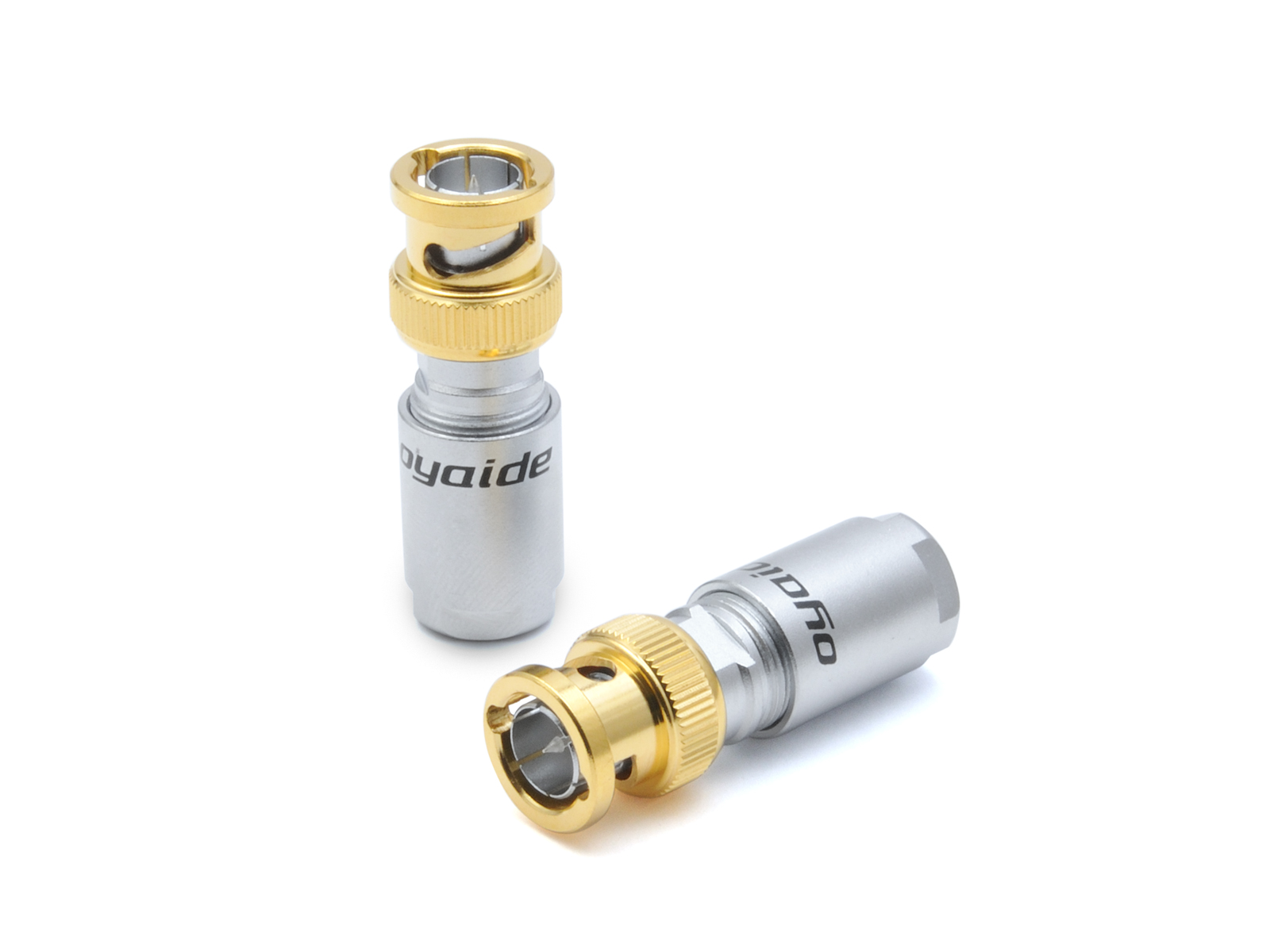

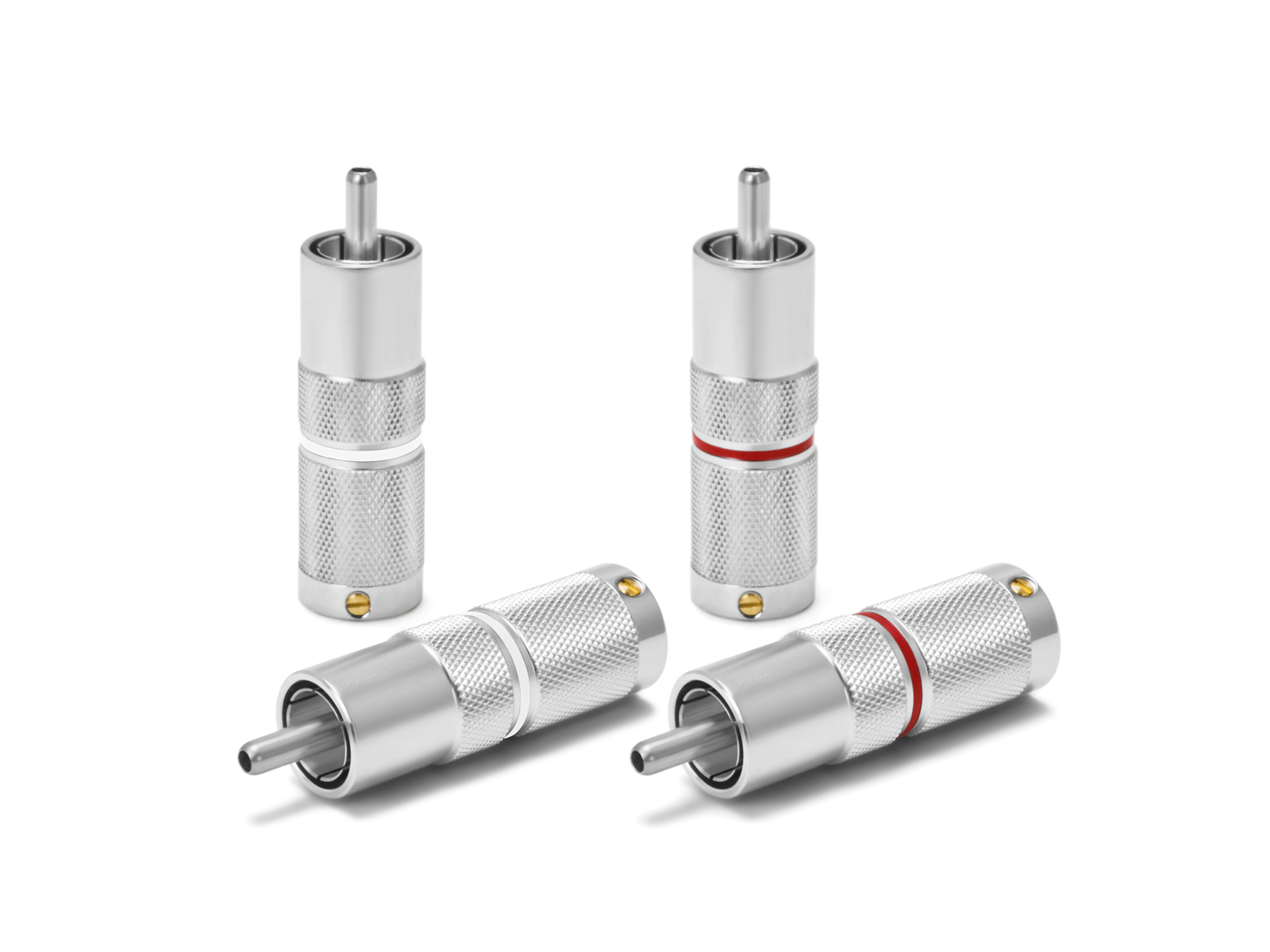

The three connectors are Oyaide’s high-end termination options for different signal formats: SLSC is a reference RCA plug with a 4N pure silver center pin, a chrome-plated brass outer shell, and solder-type termination for cables up to about 9 mm O.D. SLSB is a matching premium 75Ω BNC plug, again built around a 4N pure silver pin with a brass shell (gold + berychrome-style plating), PTFE insulation, aimed at maintaining proper digital coax impedance through the connector.
