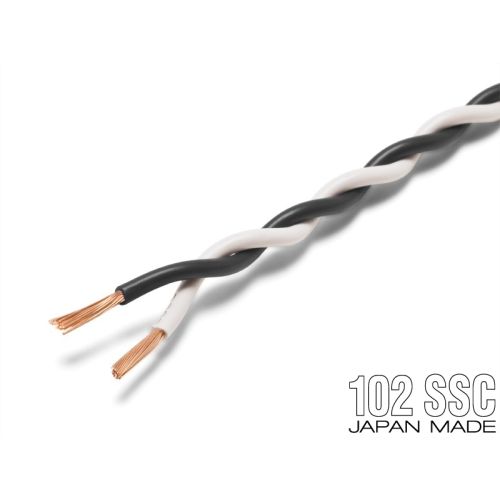

OYAIDE 3398-16TW

• Characterized by a straightforward, flat sound quality, wide range, and speedy sound.
• The twist design makes it less susceptible to magnetic effects.
• The coating uses cross-linked polyethylene and has high performance in high frequency characteristics.

Internal wiring material for audio equipment with excellent heat resistance and voltage resistance using precision conductor "102 SSC" and "XLPE" insulation.Audio internal wiring material compliant with international standard UL3398 (3398-SY excluded)

What is precision conductor “102 SSC”?

• As a result of advanced manufacturing control, the conductivity is 102.3% IACS (at the end of copper elongation)
• To avoid contamination with impurities as much as possible, we use only virgin copper, which does not contain any recycled copper, even among JIS C1011 compliant copper.
• A natural diamond die is used to improve the surface smoothness of the wire.
• Peeling process removes 100% of impurities attached to rolled copper.
• Two-time annealing process eliminates mechanical stress and distortion of the wire
• The wire was created with a processing accuracy of ±1μm, which far exceeds the standard error tolerance of ±8μm.
• Thorough product management including manufacturing control numbers, maintenance, and shipping days

What is the peeling process for precision conductor “102 SSC”?

Normally, impurities that are floating on the surface are removed by cleaning, but "102 SSC" removes 100% of the impurities that are floating on the surface by mechanical peeling, which scrapes the surface down to the μ level.The use of this peeling process on electrical copper wire is unprecedented in the world, and Japan's proud processing technology is also evident here.

For more information on precision conductor “102 SSC” here Click

What is the insulator “XLPE”?

It is an insulator used as an insulating material in industrial electric wires, and has excellent heat resistance and voltage resistance.
It is slippery, easy to strip, and has excellent workability.
The heat resistance temperature is also rated at 150℃, making it difficult to melt even with soldering heat.

Product features

• The 3398 Series is an internal wiring material for audio equipment that uses precision conductor 102SSC.
• Conforms to American UL standard AWM Style 3398 (excluding 3398-SY and 3398-24).
• Oyaide Electric's original precision conductor "102SSC" is used for audio.
• The insulator uses XLPE (cross-linked polyethylene) whose molecular structure has been strengthened by electron beam irradiation.
• XLPE exhibits high heat resistance (rated at 150°C) and high withstand voltage (rated at 300V, peak voltage 600V), and is resistant to melting even in the heat of soldering, making it highly workable.
• In addition to 5 types of conductor thickness: AWG14/16/18/22/24, a 1-core shield (3398-SY) is also available.
• 3398-SY has a 34-wire spiral shield that eliminates gaps between wires and exhibits excellent shielding effects.PVC is used for the outer sheath to ensure excellent flexibility.
• It can be used for a wide range of purposes, such as internal wiring of amplifiers and speakers, and making your own audio cables.

Precautions

• Tolerances and errors may occur in twist pitch.
• The image is for illustrative purposes only.Color, pitch, etc. may differ from the actual product.
• Industrial twist processing.We cannot respond to electrical requirements due to processing.
• If you have any questions or concerns that are not listed, please contact us before placing your order.

3398 series specifications

Specifications
