OYAIDE 3398-22AWG 24 102SSC

Precision conductor 102SSC using “ 3398-22AWG It is a 2-to-4 braided cable with 4 strands of .
It can be used for a variety of purposes, including speaker cables, bi-wires, RCA cables, and balanced headphone cables!

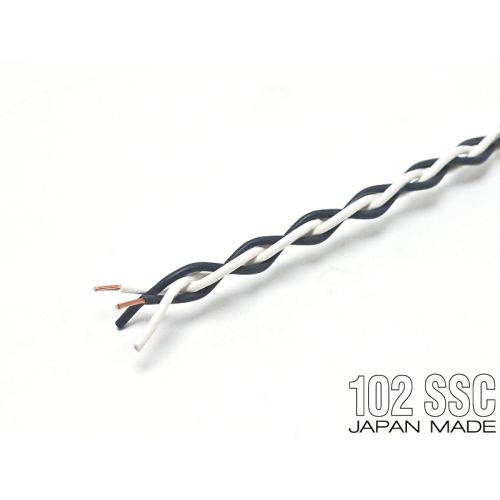

This is a neatly woven, twisted 2-to-4 core cable.

Precision conductor 102 SSC ” and “XLPE” insulation provides excellent heat resistance (rated at 105°C) and withstand voltage (rated at 300 V, peak voltage 600 V).
Internal wiring material for audio equipment that complies with the international standard UL3398. 3398-22AWG ” is used.

" 3398-22AWG ” is woven into 8 strands of “ 3398-22AWG 4 to 8 Braided Cable 102SSC ” is here Please take a look.

What is precision conductor “102 SSC”?

• As a result of advanced manufacturing control, the conductivity is 102.3% IACS (at the end of copper elongation)
• To avoid contamination with impurities as much as possible, we use only virgin copper, which does not contain any recycled copper, even among JIS C1011 compliant copper.
• A natural diamond die is used to improve the surface smoothness of the wire.
• Peeling process removes 100% of impurities attached to rolled copper.
• Two-time annealing process eliminates mechanical stress and distortion of the wire
• The wire was created with a processing accuracy of ±1μm, which far exceeds the standard error tolerance of ±8μm.
• Thorough product management including manufacturing control numbers, maintenance, and shipping days

What is the peeling process for precision conductor “102 SSC”?

Normally, impurities that are floating on the surface are removed by cleaning, but "102 SSC" removes 100% of the impurities that are floating on the surface by mechanical peeling, which scrapes the surface down to the μ level.The use of this peeling process on electrical copper wire is unprecedented in the world, and Japan's proud processing technology is also evident here.

For more information on precision conductor “102 SSC” here Click

What is the insulator “XLPE”?

It is an insulator used as an insulating material in industrial electric wires, and has excellent heat resistance and voltage resistance.
It is slippery, easy to strip, and has excellent workability.
The heat-resistant temperature is also rated at 150℃, making it easy to work with as the sheath does not easily melt even during soldering heat.

Product features

• The 3398 Series is an internal wiring material for audio equipment that uses precision conductor 102SSC.
• Conforms to American UL standard AWM Style 3398 (excluding 3398-SY and 3398-24).
• Oyaide Electric's original precision conductor "102SSC" is used for audio.
• The insulator uses XLPE (cross-linked polyethylene) whose molecular structure has been strengthened by electron beam irradiation.
• XLPE exhibits high heat resistance (rated at 150°C) and high withstand voltage (rated at 300V, peak voltage 600V), and is resistant to melting even in the heat of soldering, making it highly workable.
• In addition to 5 types of conductor thickness: AWG14/16/18/22/24, a 1-core shield (3398-SY) is also available.
• 3398-SY has a 34-wire spiral shield that eliminates gaps between wires and exhibits excellent shielding effects.PVC is used for the outer sheath to ensure excellent flexibility.
• It can be used for a wide range of purposes, such as internal wiring of amplifiers and speakers, and making your own audio cables.
