Recommended for situations like this!
-
The cable is extremely flexible and easy to route, making it ideal for PA sites and live music venues.
High quality power cables can be used at each site. -
Perfect for making your first power cable!I would like to make my own power cable because it is easy to process, but isn't it a hassle to process?
If you think so, please come!If you are still unsure, our staff will explain!Please feel free to contact us.

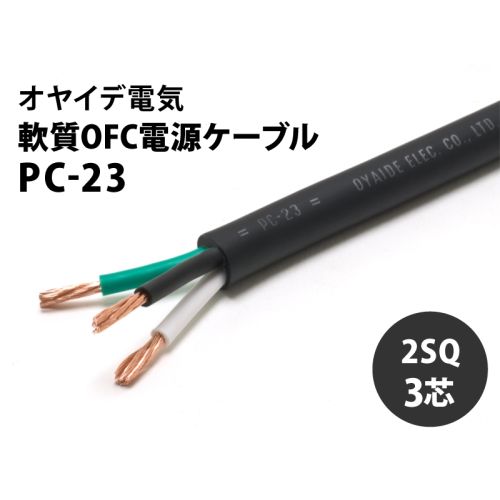

Features of PC-23
- This is a VCTF2.0sq 3-core power cable using Class 1 oxygen-free copper C1011 material.
- A flexible and easy-to-use power cable with high cost performance.
- A pure high-quality power cable will bring out the full potential of the device's original sound without changing the sound.
PC-23 conductor configuration
7/12/0.18mm rope twist
Insulator and external sheath
The exterior sheath is a soft type vinyl sheath that is heat resistant and cold resistant from 105℃ to -30℃, making it highly flexible and easy to handle.
PC-23 specifications
| conductor | Class 1 oxygen-free copper C1011 conductor |
|---|---|
| Wire diameter | 7/12/0.18 Rope twisting |
| insulator | soft pvc |
| sheath | soft pvc |
| Cable outer diameter | 9.2mm |
| Rating | 300V/15A<PS>E certified product |
| Approximate weight | Approx. 14kg / 100m |
Specifications
| conductor | Class 1 oxygen-free copper C1011 conductor |
|---|---|
| Wire diameter | 7/12/0.18 Rope twisting |
| insulator | soft pvc |
| sheath | soft pvc |
| Cable outer diameter | 9.2mm |
| Rating | 300V/15A<PS>E certified product |
| Approximate weight | Approx. 14kg / 100m |
